Professtional Indoor Keypad Electronic Lock with Webserver Function (HF-F18)

Payment Terms:	T/T,WU,
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HF-F18

Production Capacity: 1000 000

Delivery Date: 7WORKDAYS

Means of Transport: Land,

Packing: CTN

Brand Name: HFSECURITY

1.Color LCD Screen
2.Standard webserver
3.Anti-pass back
4.Optional ID card and Mifare card
5.Free software

Professtional Indoor Keypad Electronic Lock with Webserver Function (HF-F18)

Introduction:

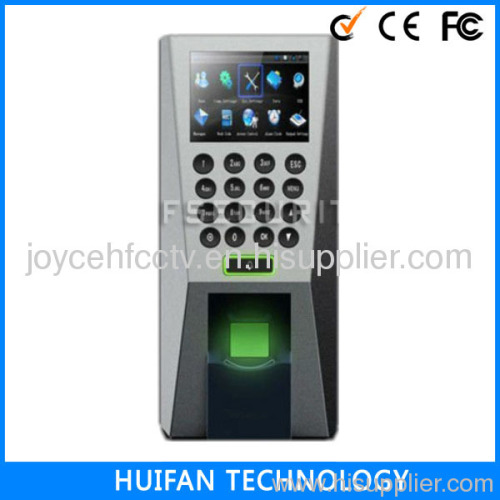

F18 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The F18 features the fastest commercial-based fingerprint matching algorithm and HF high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. All the operation can be done on the TFT-LCD. The fingerprint image will display on the screen . That will guide the user to put the finger on to proper position and increase the recognition rate.

TCP/IP and RS485 are available that the device can be used in different network.

Features:

Fingerprint reader with durable and highly accurate HF optical sensor

1 touch a-second user recognition

Stores 1,500 templates, 30,000 transactions

Reads Fingerprint and/or Card

Optional integrated smart card reader

Built-in Serial and Ethernet ports

Tamper-proofs switch and alarm outputs

Request-to-exit and alarm contacts

Audio-Visual indications for acceptance and rejection of valid/invalid fingers

Connection Diagram:

Specifications:

Fingerprint Capacity	1500 templates
Transaction Capacity	30,000
Sensor	HF Optical Sensor
Algorithm Version	HF Finger v10.0
Communication	RS232/485, TCP/IP, USB-host
Access Control Interface for	3rd party electric lock, door sensor, exit button, alarm, Door Bell
Wiegand Signal	Output and Input
Display	TFT LCD Screen
Standard function	Webserver, DLST
Optional function	ID card, Mifare card
Power Supply	12V DC
Operating Temperature	0 ℃- 45 ℃
Operating Humidity	20%-80%
